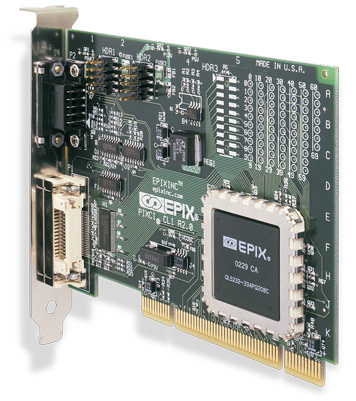

PIXCI® CL1

Base Camera Link for PCI

Features

  • PCI bus frame grabber
  • 132 megabytes per second burst DMA transfer rate
  • 100 megabytes per second sustained transfer rate
  • 32-bit memory addressing

Capture

  • Base Camera Link camera
  • Line scan or area scan cameras
  • Monochrome or color cameras
  • Individual lines or frames
  • Continuous video
  • Up to 4,096 pixels per line
  • Up to 4,096 lines per image (area scan)
  • Up to 65,534 lines per image (line scan)
  • Triggered image sequence

Trigger and I/O

  • Camera exposure and asynchronous reset control
  • Trigger and frame enable inputs
  • Strobe output
  • General purpose inputs and outputs
  • 26 pin MDR Camera Link connector
  • 9 pin Dsub for trigger and I/O

Specifications

  • 5 volts @ 530 mA
  • 32 bit / 33 MHz PCI bus master, or 64 bit / 66 MHz PCI bus master slot
  • 3.3 or 5volt PCI signaling
  • 12.5 cm long, 8.3 cm high, 4.91” long by 3.27” high
  • 77 grams, 2.7 ounces
  • 0 to 70 degrees Celsius operation
  • CE, FCC, ROHS compliant
  • Camera pixel clocks from 20 to 85 MHz
  • Made in U.S.A.

Software

  • XCAP-Lite image capture, display, and save program included with frame grabber purchase
  • XCAP-LTD captures video to computer memory and more..
  • XCAP-STD streams video to disk and performs image processing and more..
  • PIXCI Selection Guide ┬álists cameras supported with dedicated Capture & Adjust dialogs
  • XCAP supports all camera link cameras connected to PIXCI® frame grabbers
  • XCLIB programmer libraries for frame grabber and camera control
  • PXIPL image processing, measurement, and analysis libraries
  • Windows & Linux, 32 & 64-bit
  • TWAIN compatible
  • 3rd Party software solutions also available.

TTL MODULE

TTL Module The optional TTL Module minimizes false triggers when using a TTL trigger with a cable longer than one foot. The TTL MODULE converts the TTL trigger into a differential signal for reliable triggering with up to 200 feet of cable. The TTL MODULE also can generate a TTL strobe from the attached PIXCI® board. Compatible with PIXCI® CL1, CL2, CL3SD, D2X, D3X, SI, and SI4.

SPECIFICATIONS

RESOLUTION:
8 to 4,096 pixels per line
1 to 4,096 lines per image (area scan)
1 to 65,534 lines per image (line scan)
SIGNALS:
Differential RS-644
Differential Trigger IN / Strobe OUT
2 TTL input/outputs
CONNECTIONS:
1 26-pin Camera Link
1 9-pin D-Subminiature
2 10-pin headers
MAXIMUM FRAME RATE:
Camera Dependent
CE / FCC CERTIFICATION:
PIXCI CL1 was tested per EMC directive 89/336/EEC and performed to class B.
BUS REQUIREMENTS:
32 bit, 33 MHz PCI bus master, or
64 bit 66 MHz PCI bus master
3.3V or 5V PCI Signaling
POWER DRAW:
Camera attached, capturing video: 530mA
Camera attached, not capturing video: 390mA
Camera not attached: 290mA
DIMENSIONS:
12.48 cm long by 9.4 cm high (4.913" x 4.20") [short slot]
