Dual Composite Video PCI Express Bus Frame Grabber

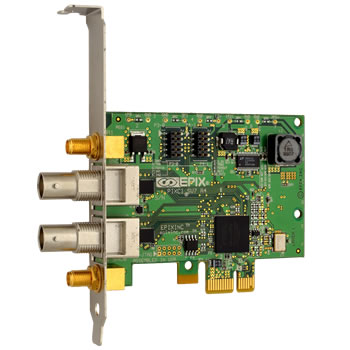

PIXCI® SV7 PCIe Frame Grabber with standard bracket

PIXCI® SV7 PCIe Frame Grabber with low-profile bracket
With optional low-profile bracket

  • Dual Composite Analog Video
  • PCI Express x1

Features

  • PCIe x1 low profile analog frame grabber
  • Standard or low-profile bracket
  • Use in any PCI Express slot
  • 2.5 gigabit per second DMA burst transfer rate
  • 200 megabytes per second sustained transfer rate
  • Programmable gain, hue, brightness, saturation, and contrast
  • 64-bit memory addressing

Image Capture

  • Capture from two non-synced cameras simultaneously
  • NTSC, RS-170, PAL, CCIR
  • 10 bits per pixel or color
  • Video to disk or memory
  • Triggered image sequence capture

Connections

  • Two BNC jacks for composite video input
  • SMA connector for trigger in
  • SMA connector for strobe out
  • Two 10-pin Headers for trigger, strobe, general purpose I/O

Specifications

  • 12 volts @ 91.3 mA, +3.3 volts @ 356 mA
  • 8.67 cm long, 6.89 cm high, 3.42" long,¬† 2.71 " high
  • 84 grams, 2.9 ounces
  • 0 to 70 degrees Celsius operation
  • CE, FCC, ROHS compliant
  • Made in U.S.A.

Software

  • XCAP-Lite image capture, display, and save program included with frame grabber purchase
  • XCAP-LTD captures video to computer memory and more..
  • XCAP-STD streams video to disk and performs image processing and more..
  • PIXCI Selection Guide ¬†lists cameras supported with dedicated Capture & Adjust dialogs
  • XCAP supports all camera link cameras connected to PIXCI® frame grabbers
  • XCLIB programmer libraries for frame grabber and camera control
  • PXIPL image processing, measurement, and analysis libraries
  • Windows & Linux, 32 & 64-bit
  • TWAIN compatible
  • 3rd Party software solutions also available.

SPECIFICATIONS

CONNECTIONS:
Two BNC Jacks: Composite Video Inputs
Two SMA Connectors: Trigger Input and Strobe Output, common to both units
Two 10-pin Headers: Trigger Input, Strobe Output, two General Purpose Outputs, and two General Purpose Inputs for each unit
Cables optionally available.
BUS REQUIREMENTS:
PCI Express x1 or wider slot.
356 mA at +3.3V 91.3 mA at +12V 2.27 total Watts
DIMENSIONS:
3.45inches by 2.713 inches (low profile).
(8.67 cm long by 6.89 cm high)
OPERATING TEMPERATURE:
0°C to 70°C
Extended temperature range may be available as a special order.
EPIX SOFTWARE Support:
Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL.
Compatible with 32-bit & 64-bit Windows 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Also TWAIN and Image-Pro Compatible.
