Embedded Imaging Systems

View, Capture, Save from any Camera Link Camera

Suitable For:

  • Industrial Control
  • Automation
  • Transportation
  • Fanless Operation
  • Silent Environments
  • Energy Efficient Operation
  • Industrial Environments


Embedded Imaging System

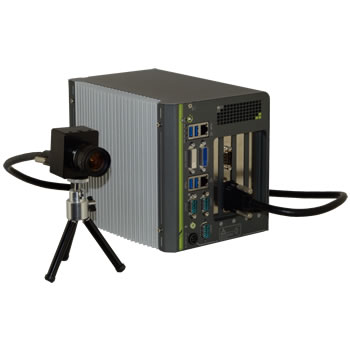

PIXCI E4G2 Embedded Imaging System:

  • Supports one Full or two Base Camera Link Cameras
  • Includes one PIXCI E4G2
  • XCAP-Lite Imaging Application
  • Intel Celeron, Core i5, or Core i7 CPU
  • Up to 16 GB RAM
  • 128 GB or larger Solid State Drive
  • Windows 10 or 7 Professional 64-bit

Pricing starts at $4000 without camera.

Notes:

  • Case Dimensions: 240 x 225 x 89.7mm (W x D x H)
  • 5x Gb Ethernet (4 w/PoE)
  • 4 x USB 3.0 ports
  • 1 DVI-D port
  • 1 VGA port
  • Input Voltage 8-35V

Pricing includes integration & system test at EPIX, Inc. Prices are in US Dollars. Prices and specifications are subject to change without notice. All prices F.O.B. Buffalo Grove, Illinois. All components are covered under their respective manufacturer’s warranty.



Embedded Imaging System

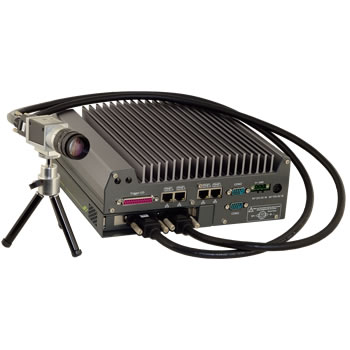

PIXCI EB1 Embedded Imaging System with Expansion:

  • Supports one Base Camera Link Camera
  • Includes one PIXCI EB1
  • XCAP-Lite Imaging Application
  • Intel Celeron, Core i5, or Core i7 CPU
  • Up to 16 GB RAM
  • 128 GB or larger Solid State Drive
  • Space for second 2.5in drive
  • Windows 10 or 7 Professional 64-bit

Pricing starts at $2000 without camera.

Notes:

  • Case Dimensions: 164 x 225 x 180mm (W x D x H)
  • 2x Gb Ethernet
  • 4 x USB 3.0 ports
  • 1 DVI-D port
  • 1 DVI-I port
  • Input Voltage 8-25V

Pricing includes integration & system test at EPIX, Inc. Prices are in US Dollars. Prices and specifications are subject to change without notice. All prices F.O.B. Buffalo Grove, Illinois. All components are covered under their respective manufacturer’s warranty.



Embedded Imaging System

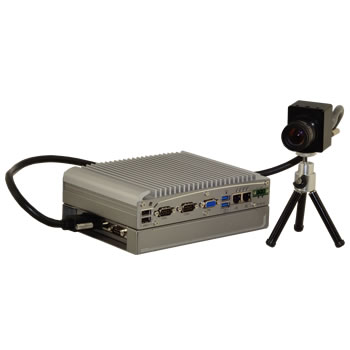

PIXCI EB1 Embedded Imaging System:

  • Supports one Base Camera Link Camera
  • Includes one PIXCI EB1
  • XCAP-Lite Imaging Application
  • Intel Quad Core CPU
  • Up to 8 GB RAM
  • 128 GB or larger Solid State Drive
  • Windows 10 or 7 Professional 64-bit

Pricing starts at $1500 without camera.

Notes:

  • Case Dimensions: 205 x 146 x 76mm (W x D x H)
  • 2x Gb Ethernet
  • 2 x USB 3.0 ports (two front, two back)
  • 1 DVI-D port
  • 1 VGA port
  • Input Voltage 8-35V

Pricing includes integration & system test at EPIX, Inc. Prices are in US Dollars. Prices and specifications are subject to change without notice. All prices F.O.B. Buffalo Grove, Illinois. All components are covered under their respective manufacturer’s warranty.



Embedded Imaging System

PIXCI EB1mini Embedded Imaging System:

  • Supports one Base Camera Link Camera
  • Includes one PIXCI EB1mini
  • XCAP-Lite Imaging Application
  • Intel Core i5 CPU
  • Up to 16 GB RAM
  • 128 GB or larger Solid State Drive
  • Windows 10 or 7 Professional 64-bit

Pricing starts at $1500 without camera.

Notes:

  • Case Dimensions: 240 x 150 x 48mm (W x D x H)
  • 2 DIMM slots (supports 8GB Memory Max.)
  • 10/100/1000Mb Ethernet
  • 4 x USB 3.0 ports (two front, two back)
  • 1 Mini-HDMI port
  • 1 Mini-DisplayPort
  • Input Voltage 12-19V

Pricing includes integration & system test at EPIX, Inc. Prices are in US Dollars. Prices and specifications are subject to change without notice. All prices F.O.B. Buffalo Grove, Illinois. All components are covered under their respective manufacturer’s warranty.
