10 Megapixel Cameras

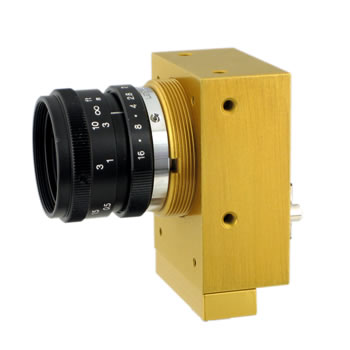

SILICON VIDEO® 10C6 Kit

*Lens optional.

  • 3840 x 2764 @ 6.2 fps
  • 3840 x 2160 @ 7.8 fps
  • 1920 X 1080 @ 29.1 fps
  • 1280 x 1024 @ 45.2 fps
  • 8 or 12 bits per pixel

Camera Sensor Features

  • 10 megapixel monochrome or color camera
  • 3840 x 2764 resolution (more than 5 times HD resolution) at up to 6.2 fps.
  • Reduced resolutions provide faster frame rates.
  • Up to 12 bits (4096 intensity levels) per pixel or color.
  • Capture & Save scientific quality uncompressed images or sequences.
  • Windowing reduces resolution to an area of interest and gives a faster frame rate.
  • Mirroring changes image read out order to flip the image.
  • Column Skip and Row Skip reduce resolution without reducing area of interest.
  • Electronic Rolling Shutter (ERS) mode provides maximum frame rates.
  • Global Reset Release provides simultaneous reset of all pixels followed by exposure and read out.  For use with a strobe or mechanical shutter.
  • Asynchronous Capture with Strobe Out.

Physical Features

  • Compact camera head.
  • Infrared cut filter.
  • Single interface cable carries power, camera controls, programmable pixel clock, and video.
  • Includes C-mount lens adapter with easily-adjustable flange distance.
  • Low noise digital signaling and a pixel clock range of 25 – 70 MHz.
  • RoHS Compliant

Frame Grabber Support

  • PIXCI® SI — 1 camera in a 32 bit PCI slot.
  • PIXCI® SI1 — 1 camera in a PCIe x1 slot.
  • PIXCI® SI2 — up to 2 cameras in a PCIe x1 slot.
  • PIXCI® SI4 — up to 4 cameras in a PCIe x4 slot.

Software Support

  • Camera integration and reset control.
  • Sequence capture.
  • Sequence save (XCAP-Ltd or Std).
  • Triggered sequence capture.
  • Extensive processing, measurement, and analysis capabilities.
  • XCAP software provides convenient control of all camera operations including pixel clock frequency, integration/exposure time, resolution, and more.
  • XCAP dialog for the SV10C6 Bayer Pattern color camera provides automatic white balance, manual adjustment of Red, Green, and Blue gain, and extensive color balance controls.
  • Windows & Linux, 32 & 64–bit.

Misc

  • Add a ½” C-Mount lens, programmer libraries, image processing, or video-to-disk and image analysis software
  • EPIX, Inc., offers complete imaging systems, built to your specifications, with cameras, frame grabbers, high performance motherboards, and RAID arrays for video to disk capture.

FEATURES

Sequence Capture with SV10C6 & SV10M6 Cameras and XCAP Imaging Program Versions

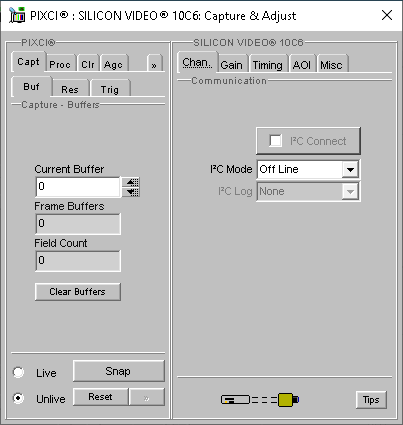

SV10C6 CAPTURE & ADJUST DIALOG

SILICON VIDEO® SV10C6 and SV10M6 cameras will capture continuously, at various resolutions and frame rates, as shown in the chart below.

XCAP-Lite will capture for 0.97 seconds at 3840 x 2764 resolution, 8 bits per pixel, 6.2 fps. Images must be saved individually. XCAP-Lite is included with the PIXCI SI series frame grabbers.

The XCAP-Ltd program captures and saves sequences for 2 minutes into 8 GBytes of available memory (computer must have approximately 12 GBytes of installed memory). XCAP-Ltd is $495.

The XCAP-Std imaging program offers video to disk capture, which can allow continuous capture for hours depending on the capacity of the computer’s storage system. XCAP-Std is $1495.

Select which version of the XCAP program is best for your application by reviewing the description on the XCAP product page.

Video-To-Disk Capture

The optional XCAP-Std imaging program enables video-to-disk capture. Requires a host computer with storage system capable of handling desired image capture rates and duration. EPIX® offers complete imaging systems, designed to your specifications, guaranteed to capture uncompressed video to disk without dropping frames.


Enclosure W. Cable

Ruggedized Enclosure

The Type-MX VideoModule ruggedized enclosure system from Tectivity, Inc. is available for SILICON® VIDEO cameras.


Contact EPIX, Inc., or your authorized EPIX, Inc. distributor, with your system requirements.

SPECIFICATIONS

Optical Format: 1/2.3-inch
Active Image Size: 6.41mm(H) x 4.62mm(V)
7.90mm Diagonal
Full Resolution: 3840H × 2764V
Pixel Size: 1.67µm × 1.67µm
Color Filter Array: Monochrome or Color RGB Bayer Pattern
Shutter Type: Electronic Rolling Shutter
Pixel Clock: 25 - 70 MHz
Frame Rate: 6.2 fps @ 70MHz (3840H × 2764V resolution)
ADC Resolution: 12-bit
Responsivity: 0.31 Volts/Lux-sec (550nm)
Dynamic Range: 65.2dB Linear
Supply Voltage: 5 Volts
Power Consumption: < 638 mWatt at maximum data rate
Operating Temperature: -40°C to +85°C
Camera Dimensions: 1.91" H x 1.51" W x 0.82" D
48.5mm H x 38.4mm W x 20.8mm D
Weight: 2.6 oz / 73 Grams
SV10C6 & SV10M6
Color/Monochrome Cameras
Frame
Resolution
Pixel Clock Frequency
25 MHz
Slowest
48 MHz
Default
70 MHz
Fastest
3840 x 2764 2.2 fps 4.2 fps 6.2 fps
3840 x 2160 2.8 fps 5.4 fps 7.8 fps
3686 x 2764 2.3 fps 4.4 fps 6.4 fps
3488 x 2616 2.6 fps 4.9 fps 7.2 fps
2592 x 1944 4.5 fps 8.7 fps 12.7 fps
2928 x 1646 4.7 fps 9.0 fps 13.1 fps
2048 x 1536 7.1 fps 13.6 fps 19.9 fps
1920 x 1080 10.4 fps 19.9 fps 29.1 fps
1280 x 1024 16.1 fps 31.0 fps 45.2 fps
3840 x 2 44.4 fps 85.2 fps 124.2 fps

EPIX SOFTWARE Support -
Supported by XCAP-Lite (no charge with camera purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL.
Compatible with WIN 10, 8, 7, Vista, XP, 2K, NT, ME, 98, 95; DOS and LINUX.

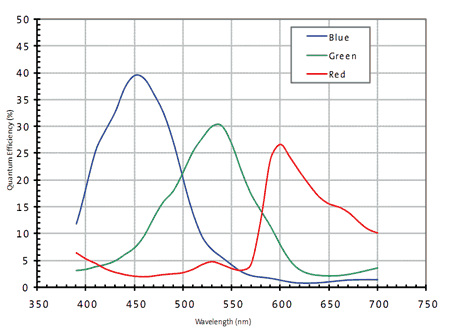

SILICON VIDEO® 10C6 Color Camera
Typical Quantum Efficiency

SV10C6 Color Camera Quantum Efficiency

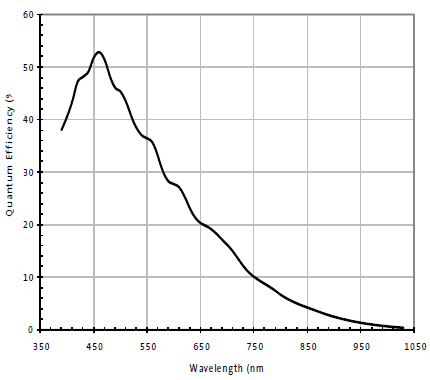

SILICON VIDEO® 10C6 Monochrome Camera
Typical Quantum Efficiency

SV10C6 Mono Camera Quantum Efficiency
