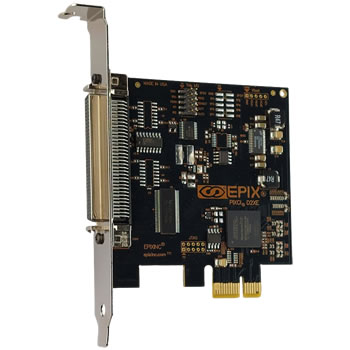

PIXCI® D2XE Card

PIXCI® D2XE

LVDS (RS-644) PCI Express x1 Frame Grabber

  • Captures at data rates up to 200 megabytes per second.
  • Capture from single or dual channel.
  • Captures 8 to 24 bit camera LVDS data.
  • Asynchronous image capture camera control.
  • TTL trigger in.
  • TTL strobe out.
  • Camera exposure and reset control.
  • Line scan or area scan cameras.
  • Line drive and frame drive inputs.
  • Two general purpose TTL inputs.
  • Two general purpose TTL outputs.
  • Single or dual board configurations.
  • Video rate image sequence capture to computer memory.
  • PCIe x1 frame grabber for LVDS parallel output digital cameras.
  • Windows & Linux, 32 & 64 bit software support.

If your digital output camera is manufactured by one of these camera companies . . .

  • Adimec
  • Atmel-Grenoble
  • Basler
  • Cohu
  • Dage-MTI
  • Dalsa
  • Duncan Technologies
  • DVC
  • EPIX
  • Hamamatsu
  • Hitachi
  • Photo Vision
  • Pulnix
  • Redlake MASD
  • EG&G Reticon
  • Sensors Unlimited
  • Takenaka
  • Teli
  • Toshiba
  • Vision Technologies
  • Varian PaxScan
  • Zoran

. . . then there is an excellent probability that the PIXCI D2XE imaging board provides the computer interface.

SPECIFICATIONS

Supports The Camera's Maximum:
Horizontal resolution.
Vertical resolution.
Frame rate.
Bit depth.

Signal Levels:
Differential RS-644 camera image data input.
TTL trigger in/out.
TTL frame enable in/out.
TTL inputs, two.
TTL outputs, two.

Connectors:
One 68-pin (SCSI II) cable receptacle
One 10 pin header for TTL I/O & triggers.

Bus Requirments:
One full height PCI Express x1 (or wider) slot.

Dimensions:
Height: 3.25 inches, 8.25 cm.
Length: 3.46 inches, 8.5 cm.

Operational Temperature Range:
0 to 70 degrees Celsius operation, with no condensation
