PIXCI® mf2280-C

Thunderbolt Full Camera Link Frame Grabber


  • Airborne
  • Automotive
  • Drone
  • Industrial
  • Mobile
  • Rugged
  • Underwater

Frame Grabber

  • MDR connectors
  • Base Camera Link
  • Medium or Full Camera Link
  • Data rates up to 1370 megabytes per second
  • Line Scan or Area Scan Cameras
  • Supports more than 1000 different camera models
  • Camera frame rate sequence capture
  • Triggered image sequence capture
  • Camera Integration & Async Reset Control
  • LVTTL Trigger In and Strobe Out


  • Thunderbolt 3
  • 64-bit memory addressing
  • 1370 megabyte per second sustained data transfer


  • XCAP-Lite image capture, display, and save program included
  • Capture video to computer memory with XCAP-LTD
  • Stream video to disk with XCAP-STD
  • XCLIB programmer libraries for frame grabber and camera control
  • PXIPL image processing, measurement, and analysis libraries
  • 3rd Party software available
  • Windows & Linux, 32 & 64–bit

The PIXCI® mf2280-C Camera Link frame grabber uses a Thunderbolt 3 port on computer systems for a very mobile solution.


Performance (Supports the camera's maximum): Horizontal Resolution
Vertical Resolution
Frame Rate
Bit Depth
Signal Input & Output: Pixel clock frequencies from 20 to 85 megahertz
Data Transfers: Supports cameras with data output rates up to 1370 megabytes per second
64 bit memory addressing
Bus Requirement: Thunderbolt 3

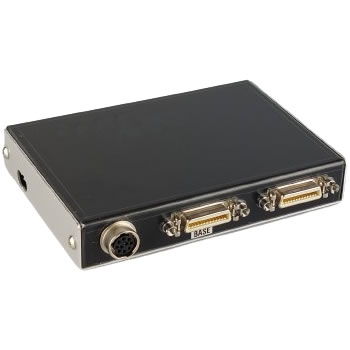

Connectors: Two 26 pin MDR Camera Link connectors
Power Requirements: 10.5 Watts
Certifications: CE Compliant
ROHS Compliant
EPIX Software Support:

Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL.
Compatible with 32-bit & 64-bit Windows 11, 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Windows Media Foundation (DirectShow) and Video for Linux (V4L2) drivers are included with all versions of XCAP. TWAIN drivers available.
