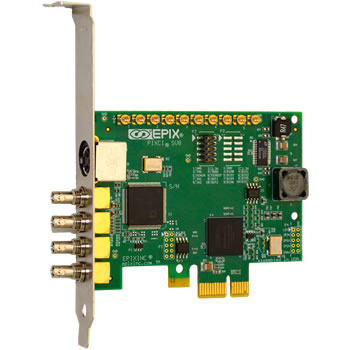

PIXCI® SV8
Frame grabber for color and monochrome analog video: S-Video, NTSC, PAL, RS-170, CCIR
Applications
- Multiple Source Capture
- Motion Analysis
- Microscopy
- Medical Imaging
- Robotics
- Laser Beam Analysis
- Multimedia
Features
- Install in any PCI Express slot (x1, x4, x8, x16).
- Four HD-BNC multiplexed inputs and one S-Video input.
- Uncompressed and lossless image capture.
- 8 or 10 bits per color value or pixel intensity.
- Enable or disable automatic gain control.
- Controls for gain, hue, brightness, saturation, sharpness, and contrast.
- 64-bit addressing for extended capture to computer memory.
- Stream video to disk for days.
- Live display through host computer’s graphics card.
- Available with standard or low profile bracket.
- RoHS compliant.
- Windows & Linux, 32 & 64–bit.
NTSC, RS-170, S-Video
- Image capture at 720 by 480 pixels or smaller area of interest.
- Capture at 30 interlaced frames or 60 discrete fields per second.
PAL, CCIR, S-Video
- Image capture at 768 by 576 pixels or smaller area of interest.
- Capture at 25 interlaced frames or 50 discrete fields per second.
SPECIFICATIONS
| Video connections: | One S-Video input. Four HD-BNC inputs. Six optional video inputs. |
| Trigger and I/O Header: | Trigger in and out. Frame Enable in and out. Dual GPIO in and out. Eight optional ins or outs. |
| Bus: | PCI Express x1 or wider. |
| Power Requirements: | 12 V @ 70 mA 3.3 V @ 390mA Total 2.127 Watts |
| Dimensions: | 3.45 inches long by 2.713 inches high. (8.67 cm long by 6.89 cm high). |
| Operating Temperature: | 0 to 70 degrees C. |
| EPIX® SOFTWARE Support: | Supported by XCAP-Lite (no charge with board purchase),
XCAP-Ltd, XCAP-Std,
XCLIB, and XCLIBIPL. |
