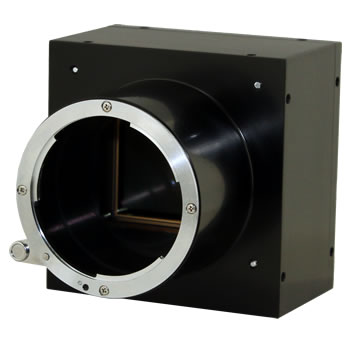

SILICON VIDEO® 20C-CL & 20M-CL
20 Megapixel Camera Link Cameras
Sensor
- SV20C-CL with RGB bayer pattern color sensor
- SV20M-CL with monochrome sensor
- 5120 by 3840 pixels
- 12 bits per pixel
- 6.4 µm square pixels
- 32.77 by 24.58 mm sensor size
- Pipelined global shutter
- Up to 30 frames per second at maximum resolution
- Higher frame rates with fewer lines
- 66 dB dynamic range
- 8.3 Volts/Lux-sec sensitivity
Camera
- Trigger input, Strobe output
- 80-Bit camera link for 25 frames per second
- Base camera link for 8 frames per second
- Two MDR camera link connectors
- 76.2 x 76.2 x 89.3 mm (3 x 3 x 3.52 inch)
- 384 grams
- Optional infrared cut filter
- 12 VDC @ 500 mA
- F-Mount
- 0 to 50°C
Software
- Control for gain, exposure, area of interest,
subsampling, left/right and top/bottom image flip - Ready to run XCAP application software
- Image sequence capture and save
- Triggered image sequence capture
- Image processing, measurement, and analysis optional
- Control of all camera registers
- Programmer libraries optional
- Image processing and analysis libraries optional
- Windows & Linux, 32 & 64–bit
PIXCI® Frame Grabbers for 80-Bit Camera Link
- PIXCI® E4G2 PCIe x4 Gen 2 (Desktop)
- PIXCI® E8 PCIe x8 Gen 1.1 (Desktop)
- PIXCI® e104x4 Gen 2 PCIe 104 (Embedded)
PIXCI® Frame Grabbers for Base Camera Link
- PIXCI® EB1 PCIe x1 (Desktop)
- PIXCI® EB1mini miniPCIe (Embedded)
- PIXCI® ECB1-34 ExpressCard (Notebook)
SPECIFICATIONS

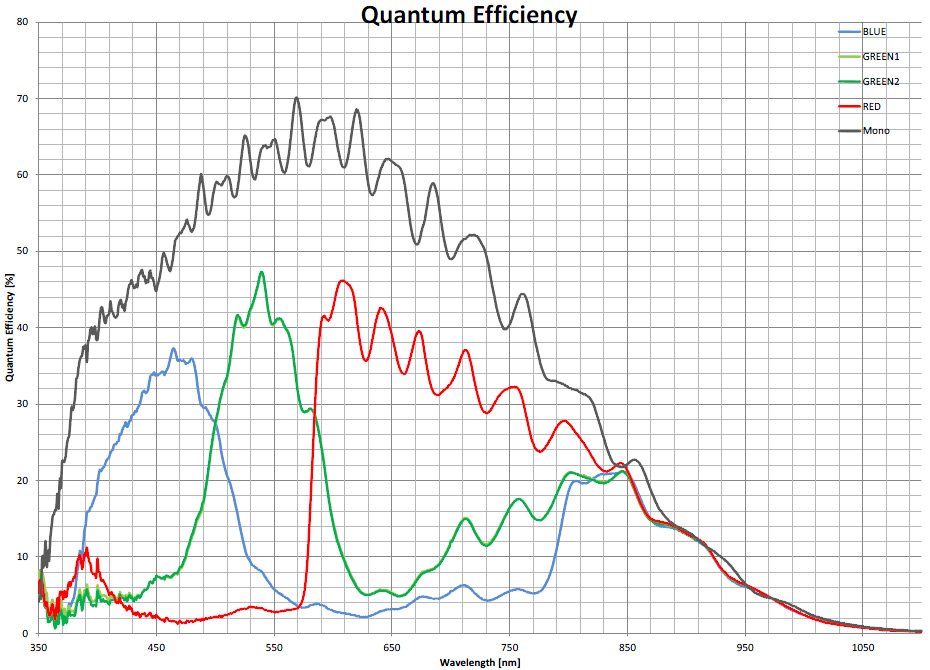

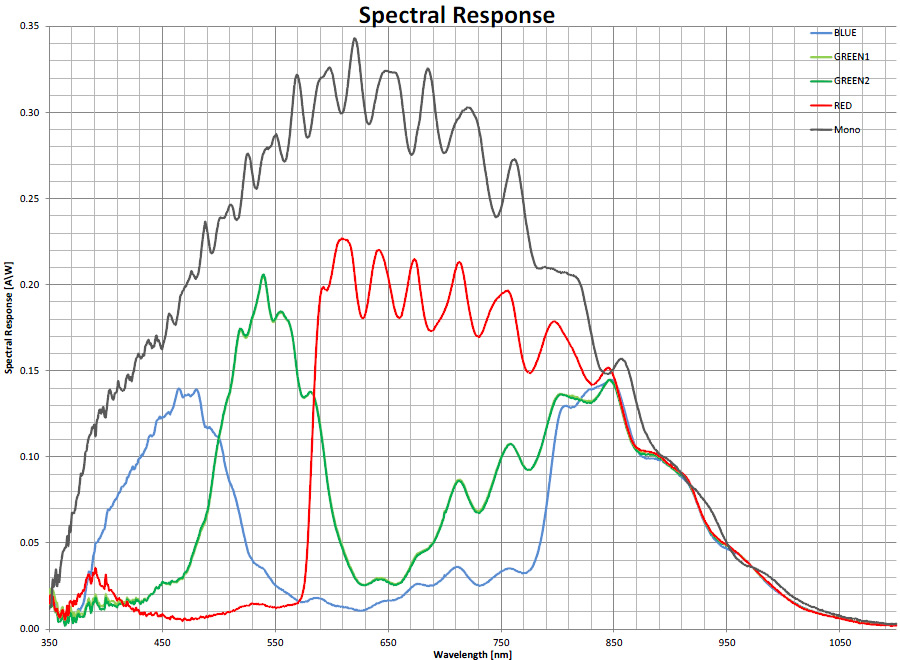

Typical spectral response and quantum efficiency for the SV20M-CL monochrome camera, or for the SV20C-CL color camera without IR Cut Filter installed.
SILICON VIDEO® 20C-CL & 20M-CL Side Dimensional Diagram
EPIX SOFTWARE Support -
Supported by XCAP-Lite (no charge with board purchase),
XCAP-Ltd, XCAP-Std,
XCLIB, and XCLIBIPL.
Compatible with 32-bit & 64-bit Windows 11, 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Windows Media Foundation (DirectShow) and Video for Linux (V4L2) drivers are included with all versions of XCAP. TWAIN drivers available.
