illunis EMC and mf2280 Bundle
Lightweight camera solutions for drones, embedded systems and industrial applications.
Resolutions from 51Mpix to 250Mpix are available

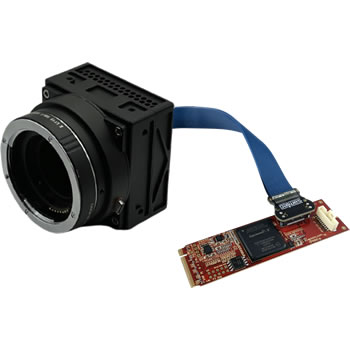

The EMC is a family of small, light weight cameras with industry standard interfaces. A native connection to the EPIX mf2280 M.2 capture card provides an extremely simple and compact solution for embedded systems. By replacing the standard camera link capture cards and cables with a M.2 card, super high resolution embedded systems and drones are possible.
The EMC offers data rates up to 1370 megabytes per second and support for all camera link modes. The PIXCI® mf2280 camera link frame grabber uses internal M.2M 2280 slots in small computer systems. Space constraints typically require routing of cables to a side of the case or to a nearby camera. COTS Samtec HLCD flexible cables are used to facilitate routing.
The EMC supports all illunis EMC+mf2280 enabled cameras including, 51, 65, 103, 250 Megapixels. Custom versions available.
EMC Highlights
- Host data connection is PCIe Gen2x4 M.2 M 2280 slot or Camera Link
- Light weight design (EMC-103 is ~210 grams without lens)
- 64-bit memory addressing with 1370 megabyte/sec maximum sustained data transfer
- XCAP-Lite image capture, display, and save program included
- Capture video to computer memory with XCAP-LTD
- Stream video to disk with XCAP-STD
- XCLIB programmer libraries for frame grabber and camera control
- PXIPL image processing, measurement, and analysis libraries
- Compatible with 32-bit & 64-bit Windows 11, 10, 8, 7, etc., LINUX.
Typical Applications:
- Aerial mapping
- Aeronautic imaging
- Intelligent traffic systems (ITS)
- Machine vision
- Medical imaging
- Packaging & inspection
- Scientific research
- Security
- Wide area surveillance
EMC and mf2280 Specifications
| Sensor/Camera’s supported |
|
||||||||||||
| Light Weight | EMC without lens mount ~ 210 grams F-Mount 65 grams EF-Mount 170 grams | ||||||||||||
| M.2 Architecture | PCIe Gen2x4 M.2 2280 slot | ||||||||||||
| System Memory | 64-bit memory addressing | ||||||||||||
| Data Rate | Up to 1370 megabyte per second sustained data transfer | ||||||||||||
| Software Interface | XCAP-Lite image capture, display, and save program included | ||||||||||||
| OS Supported | Windows & Linux, 32 & 64–bit | ||||||||||||
| Other interfaces | Standard HDR camera link The PIXCI® mf2280 works with Thunderbolt M.2 adapters | ||||||||||||
| CL Modes | Base/Medium/Full/80-Bit mode (Deca) | ||||||||||||
| mf2280 capture card | https://www.epixinc.com/products/pixci_mf2280.htm | ||||||||||||
| Data Cable | COTS Samtec HLCD HLCD-20-XX.00-TR-TR-1 Where XX = length in inches | ||||||||||||
| Camera Power: Separate from mf2280 | 7-12VDC at 6.5W typical Reverse power protected | ||||||||||||
| Operating Temperature | -30 to +70 C (TBD) |
