242 Megapixel Imaging System
Capture from 16 SILICON VIDEO® Cameras
Sixteen fifteen megapixel SILICON VIDEO® 15C5 cameras connected through four PIXCI® SI4 frame grabbers are configured in this imaging system. Utilizing an Intel Core i7 x79 chipset motherboard with 64 gigabytes of memory allows for capturing up to 4000 fifteen megapixel 8-bit images for image analysis. A variety of SILICON VIDEO® cameras with differing resolutions, frame rates, and bit depths supported by the PIXCI® SI4 can be used and are listed in the table below.

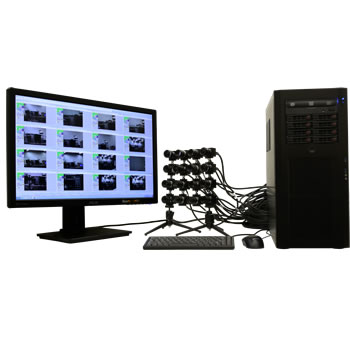

EPIX, Inc. is a Gold Partner in the Intel® Technology Provider Program and builds custom imaging systems for your imaging requirements. The pictured computer has 8 hot-swappable drive bays supporting 2.5 inch Solid State Drives. The drives can be used to store images that have been captured to memory. Drives can be configured as RAID 0 for video to disk capture, or can be configured as RAID 5 for data security.
Other cameras from our Silicon Video series may be used as show in the chart below. Contact EPIX, Inc., or an EPIX® distributor, for a system configuration for your imaging requirement.
| SILICON VIDEO® CAMERA | MAX. RESOLUTION | MAX. CAMERA DATA WIDTH |
MAX. FRAME RATE AT MAX. RES. |
|---|---|---|---|
| SV643C or SV643M | 640 × 480 | 10 bits | 211 FPS |
| SVWGAC or SVWGAM | 752 × 480 | 10 bits | 60 FPS |
| SV9M001M | 1280 × 1024 | 10 bits | 30 FPS |
| SV9T001C | 2048 × 1536 | 10 bits | 12 FPS |
| SV5C10 or SV5M10 | 2592 × 1944 | 12 bits | 10 FPS |
| SV9C10 | 3844 × 2616 | 12 bits | 6.6 FPS |
| SV10C6 or SV10M6 | 3840 × 2764 | 12 bits | 6.2 FPS |
| SV15C5 | 4608 ×3288 | 12 bits | 4.6 FPS |
